SINO SDS2-3VA 3-Axis Digital Readout System with KA300 Linear Scale Optical Encoder for Lathes and Milling Machines

SINO SDS2-3VA 3-Axis Digital Readout System with KA300 Linear Scale Optical Encoder for Lathes and Milling Machines

LCD Display: The digital readout unit is equipped with a user-friendly LCD display, providing clear and accurate numerical readings for improved visibility and ease of operation.

SDS2-3VA Digital Readout: The SDS2-3VA digital readout unit ensures precise and reliable measurements of machine axis positions, guaranteeing high accuracy for milling and lathe applications.

KA300-70mm Linear Scale Optical Encoder: The KA300-70mm linear scale optical encoder is designed for durability, offering excellent resistance to environmental factors, ensuring reliable position feedback even in demanding conditions.
Three-Axis Measurement: The system supports three axes (X, Y, Z), enabling simultaneous measurement and monitoring of machine positions for enhanced operational efficiency.

Easy Installation: The system is designed for quick and straightforward installation on milling and lathe machines, ensuring seamless integration into existing setups without hassle.

Suitable Applications:

Milling Machines: The 3-axis digital readout system is ideal for milling machines, offering essential measurement feedback for precise and efficient machining operations.

Lathe Machines: The system is also perfect for lathe machines, ensuring accurate positioning of cutting tools and workpieces for optimal performance.

Precision Engineering: Industries like aerospace, automotive, and tool manufacturing can benefit from the high accuracy and reliability of this digital readout system, enhancing precision in their operations.

Advantages

Supports Five Languages: The system supports French, German, Spanish, English, and Chinese, ensuring accessibility for users worldwide.
User-Friendly Interface: The system offers a basic and easy-to-navigate design, making it accessible for users of all experience levels.
Large, High-Resolution LCD Screen: The system features a large, highly clear LCD screen for easy readability and better visibility during operation.
Compatibility: The DRO is fully compatible with all Chinese-made linear scales, providing versatility and broad application.

SDS2-3VA LCD DRO Features:

Common Applications: Frequently used in lathe, drilling, boring, and milling machines, the LCD display is compatible with all Chinese optical linear glass scales, ensuring wide compatibility.
Language Flexibility: This feature is especially beneficial for users of milling machines and lathes from various countries, as the system can easily switch between Chinese and English on a single display.

Assessment of the SDS2-3VA Model:

Input Voltage: AC 80-240V
Signal Input: TTL signal input for precise measurement
Material: Durable plastic cover for long-lasting use
Plug Options: Available with AU, EU, US, UK plugs, and more

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder


The SDS2-3VA is a high-performance, versatile display console, designed for use with milling, lathe, and grinding machines.
It supports up to three linear encoders in this three-axis configuration. Additional interfaces are available to combine axes or adjust inputs for compatibility with equipment from other manufacturers. Please refer to the encoder compatibility guide below for more details.
The system features a robust die-cast housing with a durable, tactile front-panel membrane, ensuring long-lasting performance.
A large LCD panel provides excellent readability, enhancing ease of use.

Key features include:

PCD (Point on Circle)
Hole patterns
200 zero memory settings
Radius/diameter display
Tool offsets

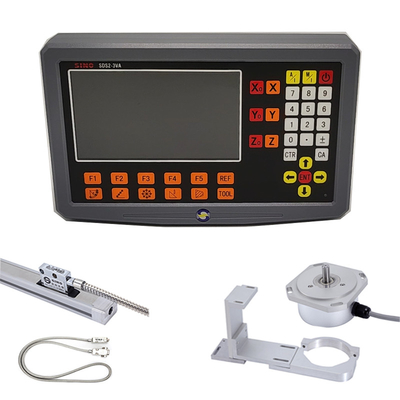

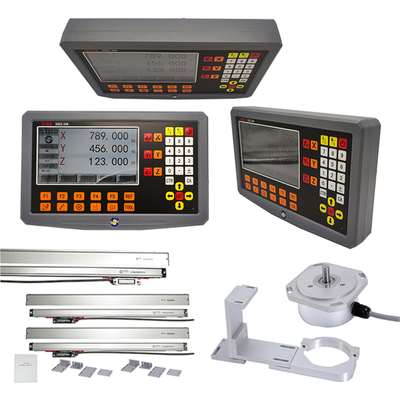

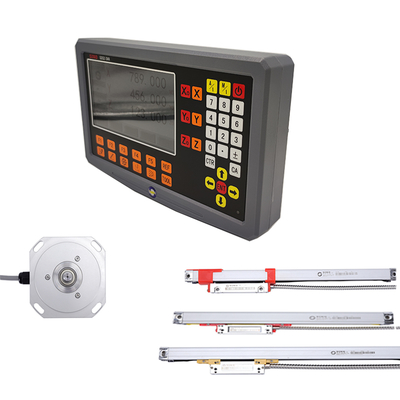

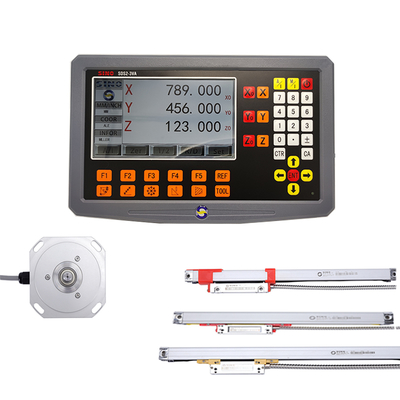

Product image /photos:

The rack in the picture is optioned, not standard product.
