2 Axis CE SDS6-2V SINO Digital Readout System With LED Display Linear Encoder For Lathe Milling Machine

2 Axis CE SDS6-2V SINO Digital Readout System With LED Display Linear Encoder For Lathe Milling Machine

Company Profile

Guangzhou SINO International Trade Co., Ltd.
Overview: This company is a subsidiary of the SINO group since 1989, specializing in advanced high-precision measuring & positioning tools,
including digital readout systems, linear grating scales, magnetic encoders, and angle encoders. It has been certified by IS09001, CE, and RoHS certificates.
They are active exporters to Europe, North America, South America & Southeast Asian.

The SDS6 series is one of the most popular models, widely used in high-precision coordinate boring machines, floor boring machines, grinding machines, lathes, milling machines, and more. It supports high-frequency A/B signal inputs up to 5MHz and features the latest 16-bit SCM technology, making it capable of meeting nearly any requirement. With faster measurement speeds and a smoother, more user-friendly control system, the SDS6 series enhances both performance and precision. Each axis offers up to 40 points of non-linear compensation to further improve accuracy.

SDS6-2V is the 2-axis display version of SDS6 series.

Basice information:

Available Voltage:

AC 100V ~ 240V, 50 ~ 60Hz; various plug types available.

Power Consumption:

15VA

Operating Temperature:

0 ~ 45°C

Storage Temperature:

-30 ~ 70°C

Readout Allowable Input Signal:

TTL/RS422 square wave

Allowable Input Signal Frequency:

Less than 5MHz

Max Resolution of Digital Display Length:

5µm (0.005mm / 0.0002")

Min Resolution of Digital Display Angle:

0.0001/pulse

Strengthen Functions:

Enhanced Calculator Function:

The system offers the ability to adjust decimal places to three, four, or five digits, enhancing calculation precision to meet various machining needs.

Non-Linear Error Compensation:

The system supports up to 40 sections of non-linear error compensation, which helps significantly improve machining precision by correcting deviations along different axes.

Decimal Digit Selection in Inch Mode:

In inch mode, you can choose between 4 or 5 decimal digits. The 4-digit option is ideal for long-scale measurements, while the 5-digit option offers a higher level of precision for fine-tuned displays.

Communication:

The system can be equipped with an RS-232-C interface, enabling seamless data transfer and communication with other devices or systems.

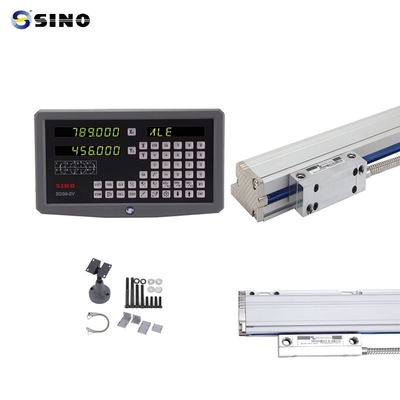

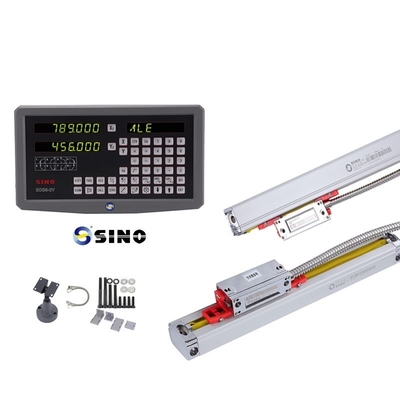

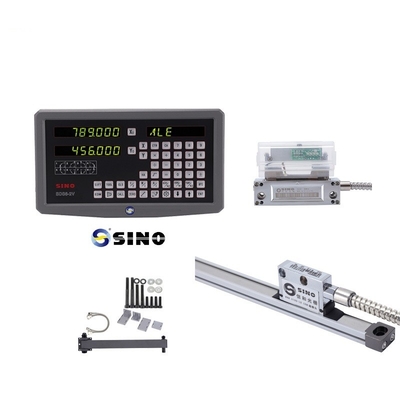

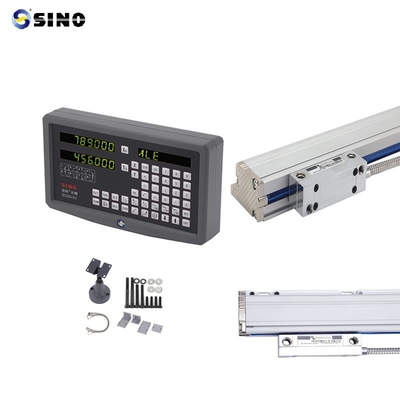

Product image /photos:

The rack in the picture is optioned, not standard product.
